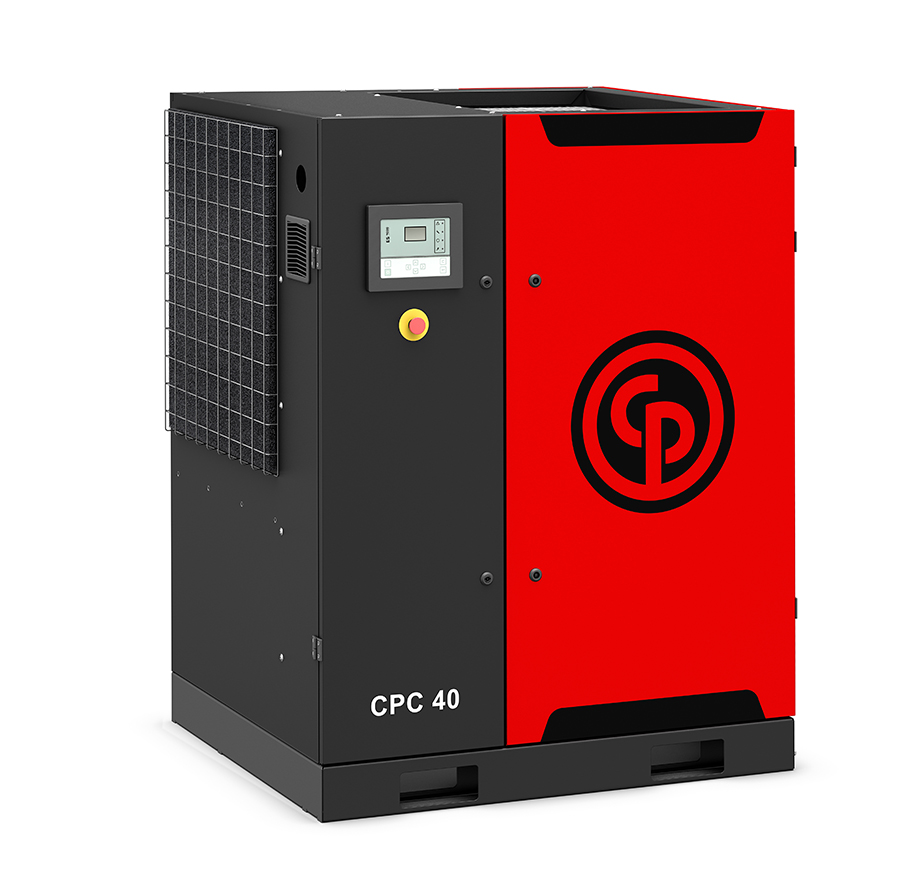

CPC / CPD 40 - 75 hp
High efficiency cooling and low power consumption make the CPC the ideal choice for processes requiring constant air flow at a steady pressure.
- Low sound enclosure
- 100-175 psig
- Whisper quite operation
- Rapid, single-panel maintenance
- Wye-Delta, reduced voltage start
- ES4000 Electronic microprocessor control
- 230/460V or 575 TEFC motor
- Price performance leader
- ASME, CRN approved
- UL and cUL approved
- CPC/CPD Series Brochure (2067kB, Pdf document) - Download
| MODEL | CPC40 | CPC50 | CPC60 | CPC75 |
|---|---|---|---|---|
| HP | 40 | 50 | 60 | 75 |
| acfm @ 100 psig | 176 | 220 | 264 | 308 |
| acfm @ 125 psig | 174 | 218 | 261 | 305 |
| acfm @ 150 psig | 150 | 191 | 229 | 271 |
| acfm @ 175 psig | 140 | 170 | 214 | 242 |
| Sound Level (dBA) | 71 | 72 | 73 | 74 |
| Length (in.) | 51 | 51 | 51 | 65 |
| Width (in.) | 42 | 42 | 42 | 42 |
| Height (in.) | 64 | 64 | 64 | 64 |
| Base Weight (lbs.) | 1645 | 1830 | 1896 | 2361 |
|
